VERIFICATION / PRE-COMPLIANCE
Compliance should confirm the design—not discover it for the first time.
Translate standards into ports, phenomena, operating modes, and performance criteria while accumulating comparative evidence during design.
11 standards and regulationsG0—G5 lifecycle evidence
MEASURE → LOCALIZE → CHANGE ONE VARIABLEContinuous immunity
Where can an external continuous field enter the system?
Radiated RF · conducted RF · BCI · magnetic fieldTransient immunity
Which path carries a high-energy pulse to a sensitive node?
ESD · EFT · surge · automotive transientsFunction and evidence
What constitutes a failure, and how is repeatability proven?
Operating modes · performance criteria · calibration · report01 / TEST MATRIX BUILDER
Derive verification phenomena from the product and its ports.
A standards navigator is more than a code list. Understand how the product connects to the outside world to avoid missing ports and worst-case modes.
SCOPE → PORT → PHENOMENA
Build the test matrix before selecting a standards code.
This is an engineering-planning model; formal applicability still requires the product-specific standard and target-market review.
01Conducted emissionsEMISSION
02Radiated emissionsEMISSION
03RF immunityIMMUNITY
04ESD / EFTIMMUNITY
05Harmonics / flickerIMMUNITY
06Common-mode current / link operating modeIMMUNITY
02 / EVIDENCE THROUGH DEVELOPMENT
Every measurement enters the same evidence chain.
Pre-compliance enables rapid comparison; formal testing determines conformity. Both must share configuration, operating mode, and change records.
Market · product standards · ports · performance criteria
Noise sources · sensitive domains · chassis and harness topology
Edge control · filtering · isolation · clamping · provisions
Stackup · return paths · hot loops · interfaces · shield termination

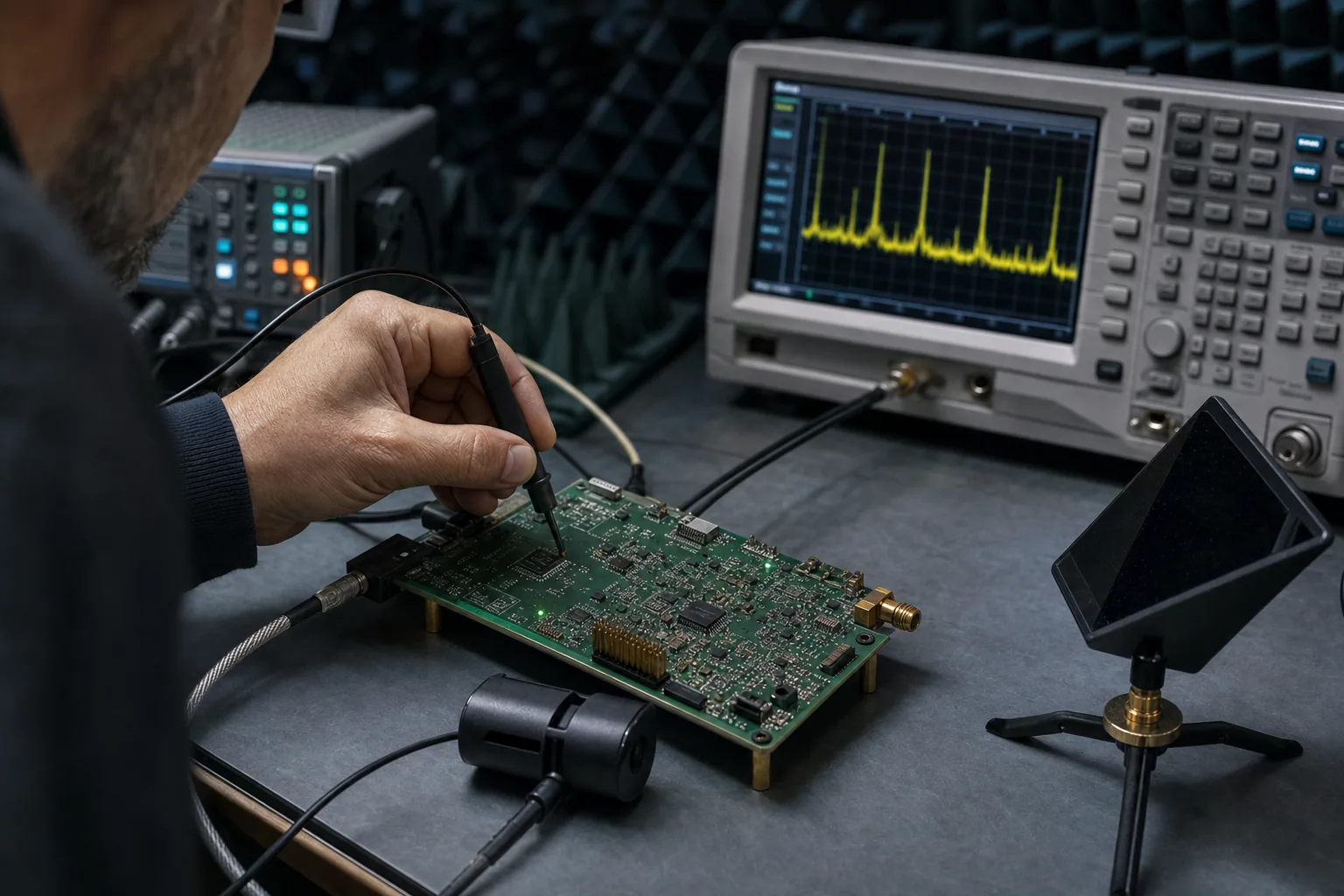

Baseline spectrum · near-field map · common-mode current · immunity threshold
Worst-case modes · margin · reports · change regression
03 / OFFICIAL SOURCE DESK
Trust the publisher for edition status.
IEC 61000-4-2 entered its third edition in 2025, while the next CISPR 32 edition remains under development. Current editions, drafts, and public abstracts are explicitly distinguished.
01IEC 61000-4-2:2025
Open the full standards navigator ↗Electrostatic-discharge immunity testing
IEC · 2025 ↗02IEC 61000-4-3:2020Radiated RF electromagnetic-field immunity
IEC · 2020 ↗03IEC 61000-4-4:2012Electrical fast-transient/burst immunity
IEC · 2012 ↗04IEC 61000-4-5:2014+A1:2017Surge immunity testing
IEC · 2017 ↗05CISPR 32:2015+A1:2019Emission requirements for multimedia equipment
IEC / CISPR · 2019 ↗06Directive 2014/30/EUEU EMC Directive
European Union · 2014 ↗0747 CFR Part 15US radio-frequency device rules
FCC / eCFR · CURRENT ↗08ISO 7637-2:2011Conducted transients on vehicle supply lines
ISO · 2011 · 2025 confirmed ↗09ISO 11451-2:2025Vehicle-level narrowband radiated immunity
ISO · 2025 ↗10CISPR 35:2016Immunity requirements for multimedia equipment
IEC / CISPR · 2016 · stable through 2026 ↗
